Subsite Marksman

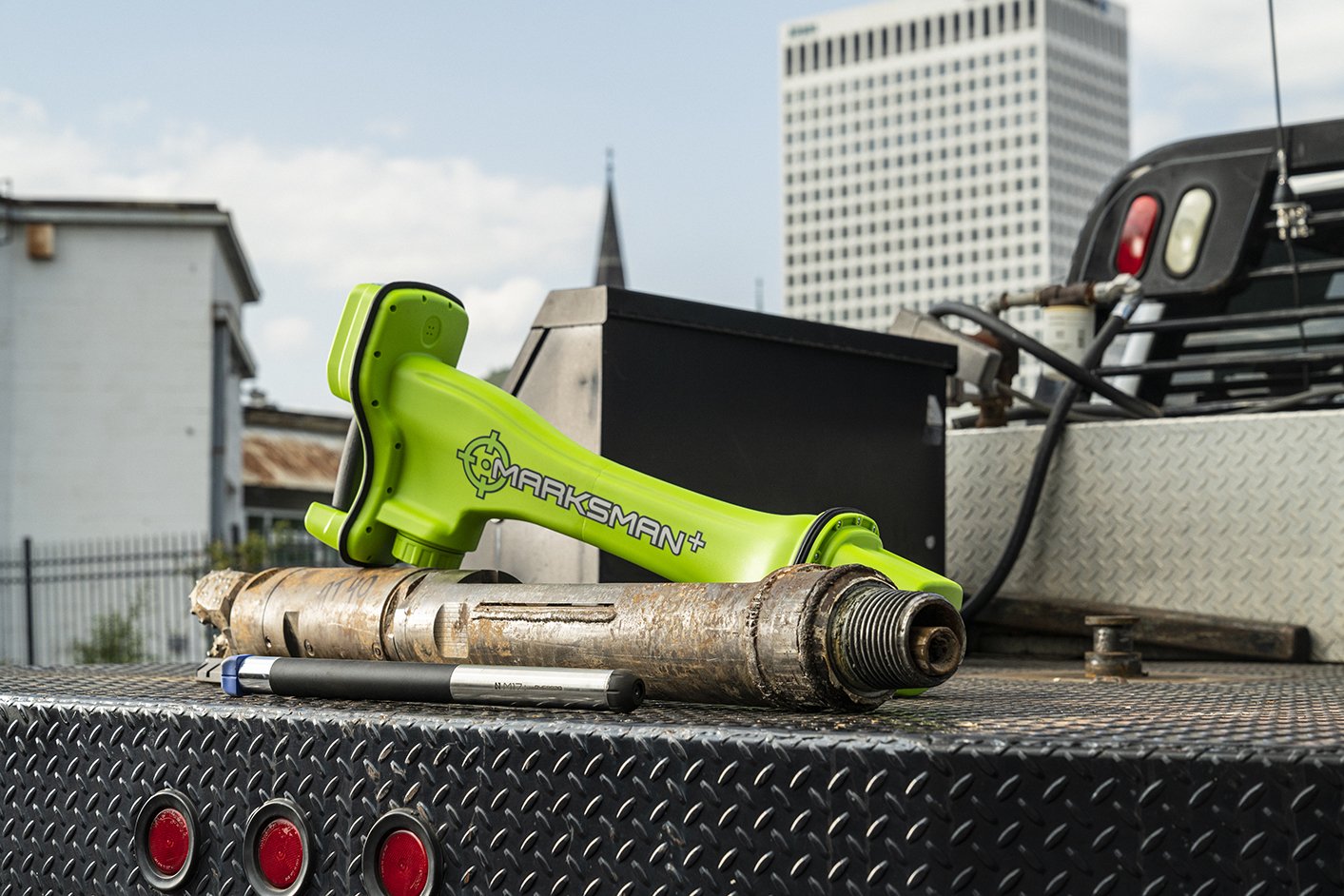

The Subsite® Marksman HDD Guidance System provides superior performance in high-interference environments with the industry’s widest range of frequencies in a single beacon. It scans the most usable frequencies, selecting the best choice to avoid interference. Its increased beacon power signal improves performance at extended depths and dual-power-mode provides consistent performance across more housing sizes. Marksman is easy to use with your choice of user interface—Classic View or the new Marksman View featuring intuitive graphics and clear data—and a simple single toggle control (no extra buttons or triggers) so you’re more productive from day one.



Dimensions 12.5 x 7.0 x 29.1 in. (317.5 x 177.8 x 739.1 mm)
Weight (with battery) 7 lbs (3.2 kg)
Operating temperature -4 to 140°F (-20 to 60°C)
Environmental rating IP65
Power source Li Ion (Inspired Energy NF2047QE34)
Battery life Up to 16 hours
Display TFT-LCD 5 in. WVGA (800 x 480 x RGB)
Audio output Speaker
Telemetry range 2000 ft (610 m)
Telemetry channels 5-12
Accuracy +/- 5% over testable range


Receiving frequencies 32
Frequency range 1.9 to 46 kHz
Depth with normal power beacon 100 ft (30.5 m)
Depth with high power beacon 130 ft (39.6 m)
Battery Life Range (normal power) 70 hrs
Battery Life Range (high power) 30 hrs
Depth range numbers are based on SAE Standard J2520, and are dependent on battery type, frequency and housing type.
Operating temperature -4 to 140°F (-20 – 60°C)
Environmental rating IP66
Power Source Powered off the HDD unit power
Display Hi-resolution graphic
Telemetry Range 2000 ft (610 m)*
Telemetry Channels 8-12


Dimensions 10 x 3.7 x 6.1 in. (254 x 94 x 155 mm)


Dimensions 7 x 7 x 6.5 in. (177.8 x 177.8 x 165.1 mm)

Key Features

Superior performance in high-noise environments with the industry’s widest range of frequencies in a single beacon.
Scans the most-usable frequencies, selecting the best choice to avoid interference.
Stronger communication between tracker and beacon at extended depths (130+ feet) for more productive bores.
Intuitive user interfaces for ease of use; choose Classic View or the new Marksman View.

Advanced locating methods let you use your preferred method of locating.

  • Walkover Mode: Lets you pinpoint drill-head location with peak and null techniques
  • Drill-To Mode: Extended range enables the drill operator to make real-time corrections further out, improving bore accuracy
Extended Range Mode extends data range and provides stronger depth readings.
Single toggle control, no extra buttons or triggers to get in the way.
0.1% pitch resolution for precision grade work.
Dual power-mode beacon allows consistent performance across housing sizes.
Integrated GPS standard (not an add-on) plus Bluetooth® compatibility with your preferred GPS device.
Fast calibration, with automatic beacon-to-tracker connection, saves time and improves productivity.
2,000-foot range between the tracker and drill operator for more productivity.
